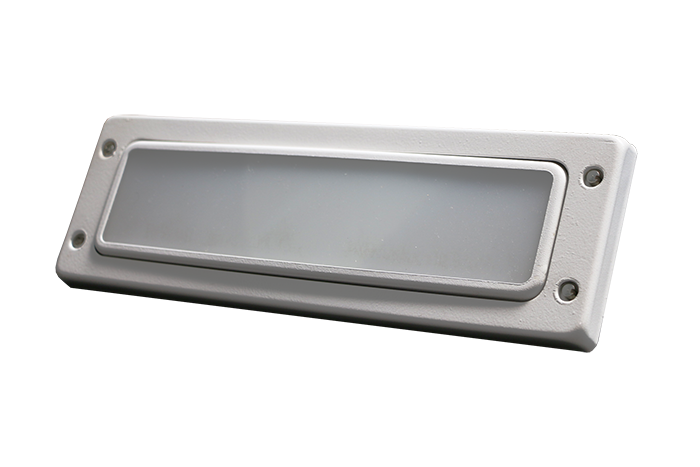

Corridor LED 2

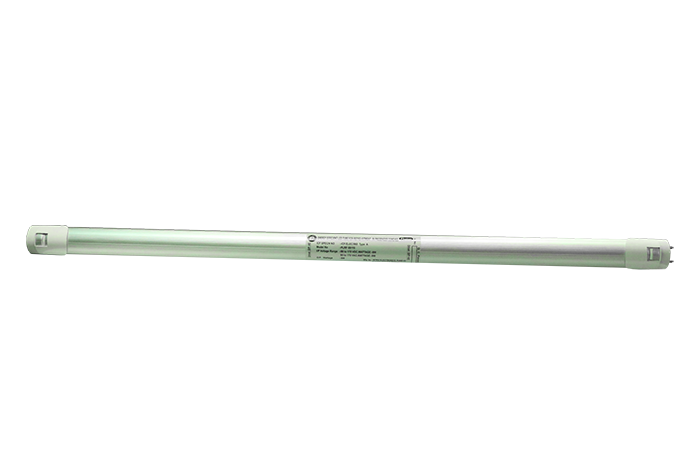

Corridor LED 3

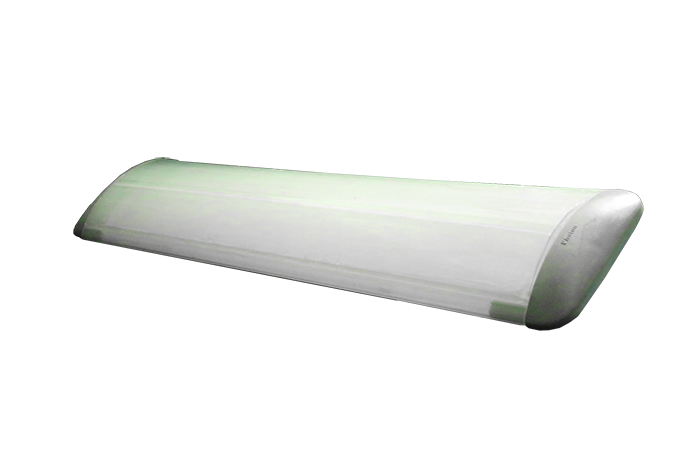

Corridor LED 4

Railway Lighting

LED Corridor, Doorway, Gangway & passenger Area (5W-18W)

Model Name: PL09110B1 Type A, B1, L, M, N

Complete assembly with integrated control Gear, LEDs and Accessories pre - wired up to terminal block

Application

Corridor

Corridor

Doorway

Doorway

Gangway

Gangway

Passenger Area

Passenger Area

ELECTRICAL SPECIFICATIONS

Warranty

5 years

Wattage

5W to 18W

PF

>0.95

THD

<10%

Operating Temperature

-5 C to +55 C

LED SPECIFICATIONS

LED life

50000 hours

CCT

6500K

Ra/CRI

80

Lumen/Watt(LED)

150 lm/watt

MECHANICAL SPECIFICATIONS

Material used for enclosure is Deep drawn high grade Sheet metal

Material for diffuser: Polycarbonate of Lexan make V0 grade

PROTECTIONS

Ingress protection

IP66

Surge protection

Yes

EMI EMC protection

Yes

O/P Short circuit protection

Yes

Over voltage protection

Yes

Energy

Energy Efficient Solutions

Aesthetics

Modern and trendy Aesthetics

Architecture

Compact design which suits the urban architecture

Gestures

Long life

Sturdy

Sturdy performance solutions

Illumination

Optimal Illumination

Maintenence

Low maintenance cost

Performance

High quality material for superior performance

...
