Railway Lighting

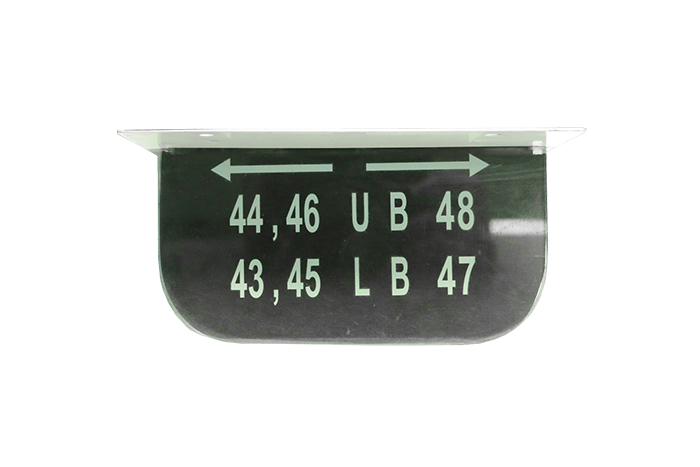

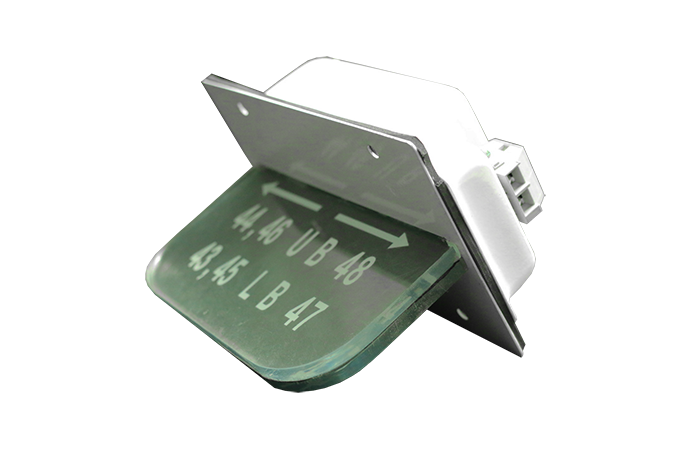

LED Night light with Berth Indication (1W)
Model Name: PNLBI1110A
Application
Berth Indicator
ELECTRICAL SPECIFICATIONS
Warranty
5 years
Wattage
≤ 1W
PF
>0.90
THD
>0.90
Operating Temperature
-5 C to +55 C
LED SPECIFICATIONS
LED life
50000 hours
CCT
6500K
Ra/CRI
80
Lumen/Watt(LED)
150 lm/watt
MECHANICAL SPECIFICATIONS
Housing is made of Sheet metal with anti rust powder coating Material for diffuser clear Polycarbonate of V0 grade (Lexan)
PROTECTIONS
Ingress protection
IP66
Surge protection
Yes
EMI EMC protection
Yes
O/P Short circuit protection
Yes
Over voltage protection
Yes
Energy Efficient Solutions
Modern and trendy Aesthetics
Compact design which suits the urban architecture
Long life
Sturdy performance solutions
Optimal Illumination
Low maintenance cost
High quality material for superior performance
...
