Railway Lighting

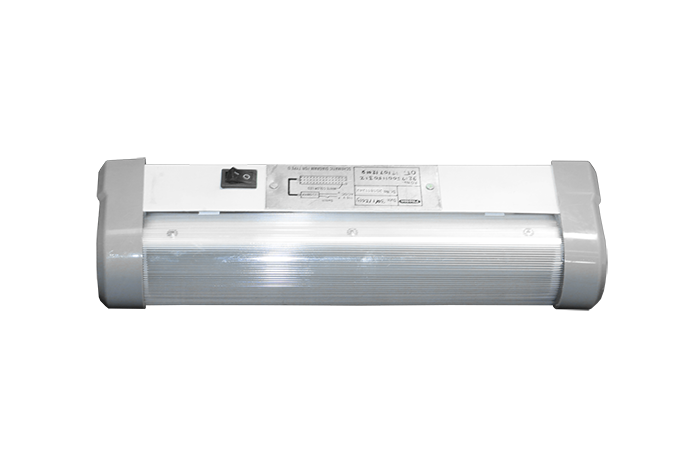

LED Lavatory, Mirror Light(9W)
Model Name: PL09110D(Type D)
Application
Lavatory Lighting
Mirror Lighting
ELECTRICAL SPECIFICATIONS
Warranty
5 years
Wattage
9W
PF
>0.95
THD
<10%
Operating Temperature
-5 C to +55 C
LED SPECIFICATIONS
LED life
50000 hours
CCT
6500K
Ra/CRI
80
Lumen/Watt(LED)
150 lm/watt
MECHANICAL SPECIFICATIONS
Material used for enclosure is Deep drawn high grade Sheet metal
Material for diffuser: Polycarbonate of Lexan make V0 grade
PROTECTIONS
Ingress protection
IP66
Surge protection
Yes
EMI EMC protection
Yes
O/P Short circuit protection
Yes
Over voltage protection
Yes
Energy Efficient Solutions
Modern and trendy Aesthetics
Compact design which suits the urban architecture
Long life
Sturdy performance solutions
Optimal Illumination
Low maintenance cost
High quality material for superior performance
...
